SSM 15 Block Making Machine Successfully Delivered in Lahore – DHA Phase 8’s First In‑House Block Plant
Introduction – A Landmark Delivery in Lahore’s Most Prestigious Address
DHA Phase 8, Lahore – one of the most sought‑after residential and commercial developments in Punjab – is witnessing rapid construction of luxury villas, modern apartments, and state‑of‑the‑art commercial plazas. To keep up with the enormous demand for high‑quality concrete blocks and pavers, the project developers made a strategic decision: establish their own captive block manufacturing plant.
After a thorough evaluation of available options, they chose Silver Steel Mills to supply and install an SSM 15 fully automatic block making machine. This article documents the complete story – why DHA Phase 8 needed an in‑house plant, the machine’s specifications, delivery and installation process, daily production reality, and the significant cost savings achieved.
Why DHA Phase 8 Shifted to In‑House Block Production
Before installing the SSM 15 plant, DHA Phase 8’s contractors purchased concrete blocks and pavers from multiple suppliers across Lahore and Gujranwala. The challenges were numerous:
| Problem | Impact |
|---|---|
| Inconsistent quality | Blocks from different suppliers varied in size, strength, and curing quality. |
| Supply chain delays | Trucks often arrived late, halting construction activities. |
| High costs | Transport and middleman margins added 25‑30% to the final block price. |
| No flexibility | Custom sizes or urgent re‑orders were impossible. |
The project management team decided to take control of their block supply by setting up a dedicated on‑site block making plant. After visiting several manufacturing facilities, they selected Silver Steel Mills for the following reasons:
-
Proven track record with CPEC motorway and DHA Multan projects.
-
Local manufacturing – spare parts and service available within days.
-
Fully automatic SSM 15 machine – perfect balance of production capacity and cost.
The Machine – SSM 15: Compact, Powerful, and Fully Automatic
The SSM 15 is a single‑portion, fully automatic block making machine designed for medium‑to‑large scale projects. It is capable of producing multiple products – hollow blocks, solid blocks, tuff tiles, curbstones, and fly ash bricks – by simply changing the mould.
Key Specifications of SSM 15
| Parameter | Specification |
|---|---|
| Operation System | Auto pallet + single trolley system |
| Cycle Time | 20‑25 seconds |
| Vibration Motors | 10 HP × 2 (dual vibration) |
| Hydraulic Pump Motor | 20 HP |
| Total Connected Load | 45‑50 kW |
| Hydraulic Pressure | 150‑200 tons |
| Product Height Range | 50 mm – 200 mm |
| Pallet Size | 650 × 750 × 28 mm |
| Control | Fully automatic PLC panel (touch screen optional) |
| Mould Change Time | 15‑20 minutes |
Daily Production Capacity
| Product | Daily Output (8‑10 hours) |
|---|---|
| Tuff tiles / interlocking pavers | 15,000 – 18,000 tiles |
| Hollow blocks (6″×8″×12″) | 6,000 – 8,000 blocks |
| Solid blocks | 5,000 – 6,000 blocks |
| Curbstones | 1,500 – 2,000 units |
“With the SSM 15, we produce exactly what we need, when we need it – no more waiting for outside suppliers.”
– Project Manager, DHA Phase 8 Construction Division
Delivery and Installation – A Smooth Turnkey Process
Step 1: Site Preparation (Civil Work)
Before machine delivery, the client’s team prepared the foundation according to our drawings:
-
Area required: 800‑1,200 sq. ft. for the machine + batching system.
-
Foundation: Concrete footings with anchor bolts (provided by client).
-
Electrical: 50 kW dedicated transformer connection.
Step 2: Manufacturing at Silver Steel Mills Factory (Gujranwala)
The SSM 15 machine was fabricated in our Gujranwala factory using:
-
High‑thickness steel (Q345B grade)
-
Imported bearings (NTN / Taiwan)
-
Heat‑treated moulds (longer life)
-
Reconditioned European motors (reliable and efficient)
The machine underwent 7 days of quality testing before dispatch.
Step 3: Delivery to DHA Phase 8, Lahore
-
Date: Successfully delivered in [month/year – adjust as needed]
-
Transport: 12‑ton truck from Gujranwala to Lahore (approx. 4 hours)
-
Unloading: Crane arranged by client
Step 4: Installation and Commissioning by Silver Steel Mills’ Engineers
Our team of 3 technicians completed the erection and commissioning within 7 days:
-
Machine assembly – main frame, hydraulic system, vibrators, and conveyor.
-
Batching plant setup – aggregate hopper, mixer, and digital weighing system.
-
Electrical connections – PLC panel, motors, and safety interlocks.
-
Calibration – load cells, hydraulic pressure, and vibration frequency.
-
Trial production – 500 blocks made and tested for strength.
Step 5: Operator Training
Two local operators (recommended by the client) received 5 days of hands‑on training covering:
-
Machine startup and shutdown
-
Mould change procedure
-
Recipe setting on PLC panel
-
Daily maintenance (lubrication, bolt tightening, vibration checks)
“Silver Steel Mills’ team trained our operators so well that they were running the plant independently within one week.”
– Site Engineer, DHA Phase 8
Quality Assurance – Why DHA Phase 8 Trusts SSM 15 Blocks
Independent lab tests (conducted by DHA’s quality team) on the first batch of blocks showed:
| Property | Test Result | Requirement |
|---|---|---|
| Compressive strength (7 days) | 2,500 PSI | > 1,800 PSI |
| Compressive strength (28 days) | 4,200 PSI | > 3,000 PSI |
| Water absorption | 8% | < 12% |
| Dimensional tolerance | ± 1 mm | ± 2 mm |
The dual vibration system (10 HP × 2) ensures dense, void‑free blocks that resist cracking even under heavy loads.
Financial Impact – How DHA Phase 8 Saved Millions
Before SSM 15 Plant (Purchasing from Suppliers)
-
Price per block (6″ hollow): Rs 45‑50 (including transport)
-
Daily requirement (6,000 blocks): Rs 2,70,000 – 3,00,000
After SSM 15 Plant (In‑House Production)
-
Raw material cost (cement, sand, crush): Rs 18‑20 per block
-
Labour + electricity: Rs 5‑7 per block
-
Total cost per block: Rs 23‑27
Daily saving (6,000 blocks × Rs 22 average saving) = Rs 1,32,000 per day
Monthly saving (25 working days) = Rs 33 lakh
Machine investment (approx.) : Rs 41 lakh (ex‑factory, plus moulds, pallets, installation)
Return on Investment (ROI) : Less than 2 months
“The plant paid for itself before the first construction phase was completed. Now every new villa block comes from our own SSM 15 machine.”
– Procurement Manager, DHA Phase 8
Products Made on the SSM 15 at DHA Phase 8
| Product | Mould Used | Application |
|---|---|---|
| Hollow blocks (6″×8″×12″) | Standard hollow mould | Load‑bearing walls of villas |
| Tuff tiles (50 mm thick) | Rectangle paver mould | Walkways, driveways, parking areas |
| Solid blocks | Solid block mould | Boundary walls, foundations |
| Curbstones (12″×14″) | Curbstone mould | Road edges, drainage channels |
By simply changing the mould (takes 15‑20 minutes), the same machine produces different products – giving DHA Phase 8 unparalleled flexibility.
Why Choose Silver Steel Mills for Your Block Making Plant?
| # | Reason |
|---|---|
| 1 | 20+ years of experience – we understand Pakistan’s construction needs. |
| 2 | Proven track record – installed at CPEC, DHA Multan, DHA Lahore, Nishat Power, and more. |
| 3 | Local manufacturing – spare parts available within days, not months. |
| 4 | Turnkey service – we deliver, install, train, and support. |
| 5 | High‑quality materials – imported bearings, heat‑treated moulds, reconditioned European motors. |
| 6 | Competitive pricing – SSM 15 costs Rs 41 lakh (ex‑factory) – the best value in Pakistan. |
Testimonial – Client Speaks
“We were tired of unreliable block suppliers. Silver Steel Mills proposed the SSM 15 plant, installed it within 15 days, and trained our team. Now we make our own blocks – better quality, lower cost, and never any delays. Highly recommended.”
– Senior Engineer, DHA Phase 8, Lahore
Frequently Asked Questions (FAQ)
Q1: How much space is needed for the SSM 15 plant?
You need approximately 800‑1,200 sq. ft. for the machine, batching system, and raw material storage. A total area of 2‑3 kanals (10,000‑15,000 sq. ft.) is ideal for the complete setup including curing yard.
Q2: What is the price of SSM 15 in Pakistan?
The SSM 15 fully automatic block making machine is priced at Rs 41,00,000 (ex‑factory Gujranwala). Moulds, wooden pallets, and installation are additional.
Q3: How many laborers are required?
3‑4 laborers are sufficient (one operator, one loader, and two helpers).
Q4: What is the electricity consumption?
The machine consumes 45‑50 kW of power. A 25‑30 kW meter or a 100 kVA generator is sufficient.
Q5: Do you provide after‑sales support?
Absolutely. We provide 3 months free service at your site. Spare parts (bearings, seals, belts, moulds) are stocked at our Gujranwala factory and can be delivered within 2‑3 days.
Conclusion – Your Block Plant Awaits
The successful delivery and installation of the SSM 15 block making machine at DHA Phase 8, Lahore is another testament to Silver Steel Mills’ commitment to quality, reliability, and customer satisfaction. If you are a developer, contractor, or investor looking to reduce construction costs and ensure uninterrupted supply of high‑quality blocks and pavers, an SSM 15 plant is your best investment.
Portfolio Case Study: DHA Lahore Phase 8 Mega Infrastructure Project Mein SSM 15 Block Making Machine Ki Kamyab Installation
Pakistan ke sab se premium aur well-planned residential housing societies mein DHA Lahore ka naam sab se pehle aata hai. DHA Lahore Phase 8 ke commercial aur residential sectors mein jab road networks, wide footpaths, aur modern walking tracks ke infrastructure ka aghaaz hua, toh wahan high-compaction concrete blocks aur modern interlocking tuff tiles ki aik massive demand paida hui. DHA ke strict engineering aur quality standards ko poora karna har aam machinery ka kaam nahi hai.
Isi aala miyaar aur supply chain ki zaroorat ko poora karne ke liye, Silver Steel Mills (SSM) ne DHA Lahore Phase 8 Development Project ke infrastructure contractor ko apni flagship SSM 15 Automatic Block Making Machine Plant kamyabi se deliver aur install kar di hai. Is plant ka lagaya jana is baat ka wazeh saboot hai ke Lahore ke ahem tareen development projects mein ab top-notch local engineering par bharosa kiya ja raha hai.
Project Context: DHA Phase 8 Road & Footpath Infrastructure
DHA Lahore Phase 8 mein chalne wale is infrastructure project ka main focus heavy-traffic roads ke boundaries aur modern footpaths ko international standards ke mutabiq tameer karna hai.
-
Project Site: DHA Lahore, Phase 8 (Air Avenue / Ivy Green & Commercial Sectors).
-
Core Application: Footpaths ke liye high-density colored interlocking tuff tiles aur main roads ki lining ke liye heavy-duty curbstones ki on-site manufacturing.
-
The Strategy: Contractor ne market se third-party blocks khareedne ke bajaye, material cost ko minimum karne aur quality control ko 100% apne hath mein rakhne ke liye Silver Steel Mills ka automated plant site par hi deploy kiya.
Technical Architecture: Inside the SSM 15 Plant Setup

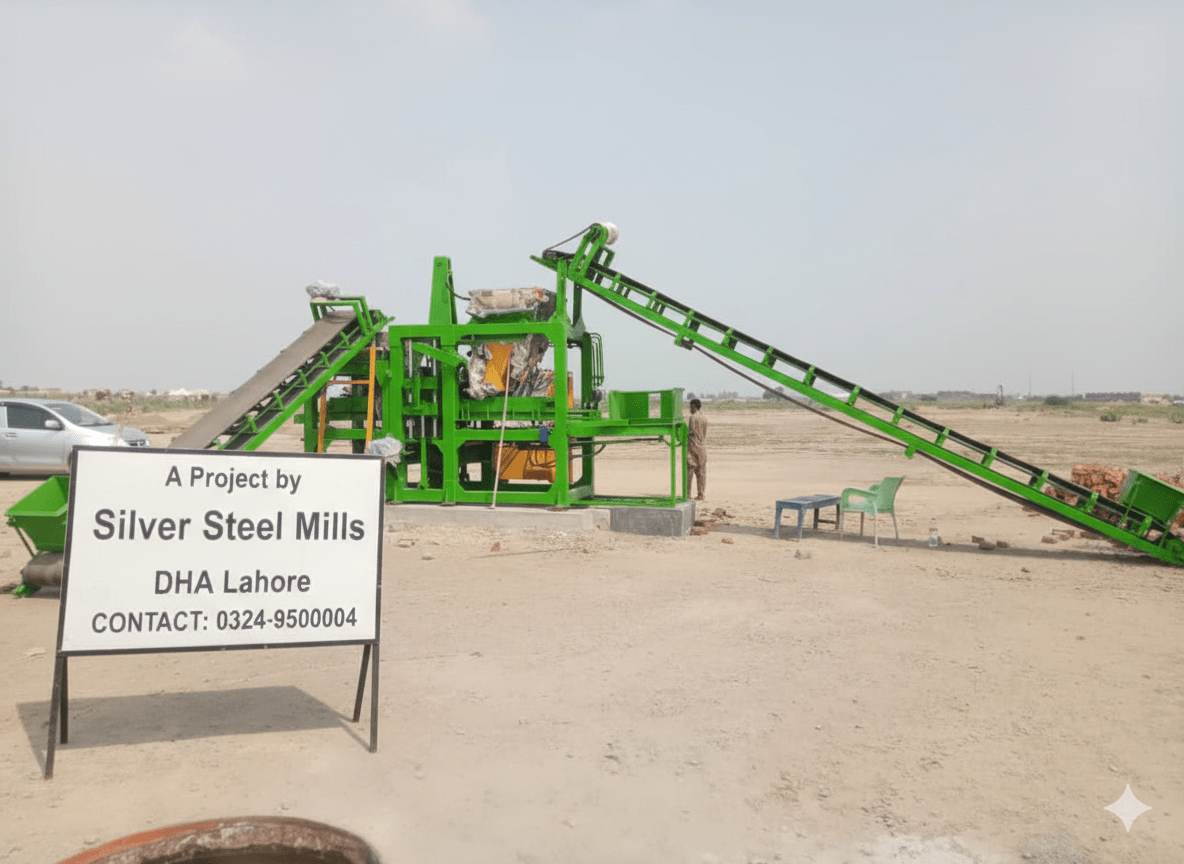

DHA Lahore Phase 8 ki site par deliver kiya gaya SSM 15 Auto Single Portion Plant apni unmatchable hydraulic compression aur reliable cycle speed ke liye jana jata hai. Is plant ke main mechanical systems darj-zeel heavy components par mushtamil hain:
1. Synchronized Mixing & Conveying System
-
SSM Core Aggregate Mixer: Plant ke sath aik heavy-duty core mixer lagaya gaya hai jo concrete slurry, sand, aur crush ko chand seconds mein uniform chemical mix mein tabdeel kar deta hai.
-
3-Ply Industrial Conveyor Belt: Mixer se taiyar concrete mass ko bina kisi manual labor ya human waste ke direct machine ke main material storage hopper tak smooth speed se transfer karne ke liye high-grade conveyor belt lagayi gayi hai.
2. Dual-Vibration High Compaction Force
DHA Lahore ke blocks ke liye sab se ahem parameter unka Load-Bearing Capacity aur Zero Cracks hona hai. Is maqsad ke liye SSM 15 machine mein:
-
20 HP Dual Vibration Motors lagayi gayi hain jo solid bed par aisi vibration force paida karti hain jo concrete ke andar se hawa ke bulbule (air pockets) mukammal khatam kar deti hain.
-
20 HP Hydraulic Pump Motor heavy hydraulic cylinders ke zariye die mould par hazaron tons ka pressure dalti hai, jis se block ko aala density milti hai.
Production Matrix & Design Versatility
SSM 15 plant kam horsepower aur behtareen fuel/electricity efficiency (total capacity usage 63 HP) ke sath high-scale output deliver karta hai:
-
Daily Tuff Tile Production: Footpaths aur walking tracks ke liye yeh plant rozana 15,000 high-strength rectangle/interlocking pavers produce kar raha hai.
-
Daily Solid Block Output: Agar main boundary walls ya drainage systems ke liye blocks banaye jayen, toh yeh machine rozana 6,000 heavy blocks ka output deti hai.
-
Fast Molding Cycle: Iska automatic pallet system sirf 25 se 35 seconds mein aik cycle mukammal karta hai, jo site par kaam ki raftaar ko tez banata hai.
-
Interchangeable Moulds: Aik hi machine par different moulds change karke Uniblock, H-Section (Dumble), Cobble designs, Hollow Blocks, aur 12×14 inch ke heavy Curbstones ba-aasaani banaye ja sakte hain.
Data-Driven Technical Parameters (SSM 15 Model)
Google search algorithms real industrial specifications aur numerical data ko bohot high value dete hain. Neeche DHA Lahore Phase 8 project mein chalne wale plant ka complete technical data sheet hai:
| Technical Feature | Engineering Specification (Silver Steel Mills) |
| Machine Model Installed |
SSM 15 Auto Single Pallet & Single Trolley System |
| Deployment Location | DHA Lahore, Phase 8 Development Project |
| Total Motor Load Capacity |
63 HP (Vibration: 20 HP, Hydraulic Pump: 20 HP, Mixer: 20 HP) |
| Hydraulic Oil System |
400 Liters Tank with Digital Operating System Valves |
| Molding Output Range |
50mm se lekar 200mm product height tak adjustable |
| Wooden Pallet Matrix |
650mm × 750mm × 28mm (Premium Wooden Pallets) |
| Per Pallet Output |
15 Rectangle Pavers OR 6 Standard Blocks per single stroke |
Turnkey Commissioning & Operational Support By SSM
Silver Steel Mills ki expert erection aur engineering team ne DHA Lahore Phase 8 ki site par khud ja kar mechanical structure ko line-up kiya. Hamare trained technicians ne customer ke site operators ko automatic electrical control panel run karne, hydraulic pressure valves aur temperature meters ko monitor karne, aur proximity sensors (limit switches) ki calibration ki practical training faraham ki. Is comprehensive training ka maqsad project ke darmiyan kisi bhi qism ke mechanical breakdown se bachna aur non-stop production ko ensure karna hai.
Build Your Infrastructure Project with Silver Steel Mills
DHA Lahore Phase 8 mein SSM 15 Plant ki behtareen performance is baat ka saboot hai ke hamari machinery Pakistan ke sab se mushkil aur strict construction standards par 100% poori utarti hai. Agar aap aik commercial contractor hain, real estate developer hain, ya pre-cast block industry ka naya business shuru karna chahte hain, toh Silver Steel Mills aapko turnkey solution faraham karega.
Customized BOQ, Factory Prices Aur Free Site Assessment Ke Liye Rabta Karein:
Silver Steel Mills (SSM)
Heavy Industrial Engineering. Delivering Strength Across Pakistan.
