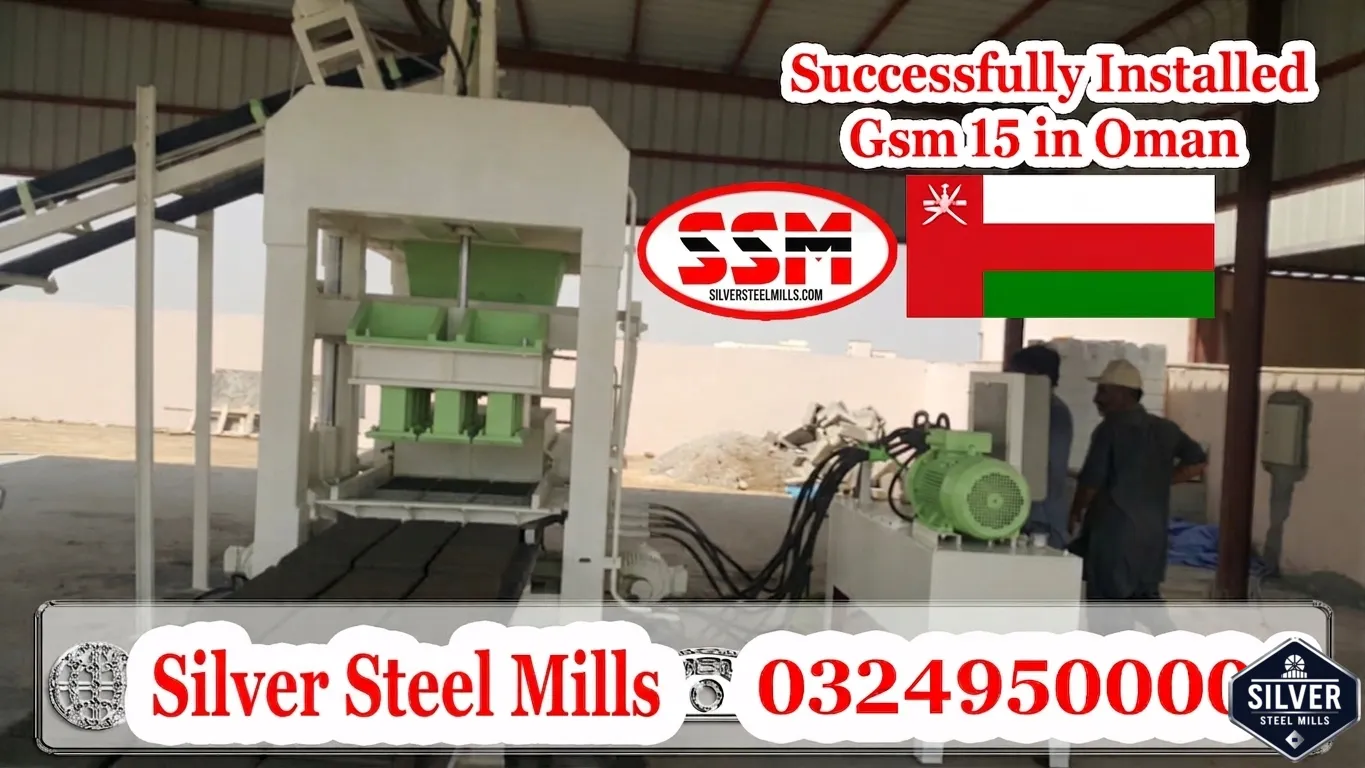

SSM 15 Block Making Machine Successfully Delivered in Oman – A Case Study in Customization and Quality

Introduction – Expanding Horizons to the Sultanate of Oman

Silver Steel Mills has long been recognized as Pakistan’s premier manufacturer of block making machines, serving major projects like the CPEC motorway, DHA Lahore, and Nishat Power. In a significant step toward global expansion, we successfully delivered and commissioned an SSM 15 fully automatic block making machine to a valued customer in Oman – a nation experiencing rapid infrastructure growth driven by its Vision 2040 economic diversification plan.

This article provides a detailed account of the project: from the initial customer requirements and machine customization to installation, technical adjustments, and the long‑term value delivered. Written in a real‑world, human style, it highlights how Silver Steel Mills adapts its machinery to meet diverse international standards while maintaining cost‑effectiveness.

---

The Customer’s Need – Producing Oversized, High‑Strength Bricks

The Omani customer, a medium‑scale construction materials supplier, approached Silver Steel Mills with a specific requirement: produce extra‑thick, heavy‑duty bricks for use in infrastructure projects such as drainage channels, retaining walls, and industrial flooring. Unlike standard 100‑150 mm thick blocks, these bricks were required to be over 250 mm (25 cm) thick – almost double the usual size.

Key Requirements:

Standard block machines typically produce four bricks per cycle. However, due to the extreme thickness (over 250 mm), the SSM 15 could only produce two bricks at a time. This trade‑off was acceptable to the customer because the finished product’s density and strength far exceeded normal requirements.

---

Machine Customization – The SSM 15 for Heavy‑Duty Production

The SSM 15 is normally configured for 150‑200 mm thick products, delivering 4‑6 blocks per cycle. For the Omani customer, our engineering team modified the mould and press to accommodate 220 mm width and 250+ mm height.

SSM 15 Specifications (as delivered to Oman)

The customer was particularly interested in increasing the machine’s hydraulic pressure from the standard 10‑15 tons (on the pressing cylinder) to 100 tons for even denser bricks. We offered a fully upgradable design with a larger hydraulic cylinder – a modification we had previously implemented for clients in Africa and the Middle East.

---

The Delivery and Installation Process

Step 1 – Order Placement and Manufacturing (Pakistan)

After multiple virtual meetings and sharing of technical videos, the Omani customer placed the order in early 2024. The SSM 15 was manufactured at our Gujranwala factory within 30 days, including:

• Fabrication of the heavy‑duty main frame (Q345B steel)

• Installation of dual 10 HP vibrators

• Assembly of hydraulic system with pressure gauge

• Custom moulds for 220×250 mm bricks

• 200 wooden pallets (650×750 mm)

Step 2 – Quality Testing and Video Demonstration

Before shipping, we conducted a 48‑hour continuous trial run at our factory, producing over 2,000 bricks. The customer observed live via video call, noting that the initial bricks appeared slightly wet (too much water in the mix). Our team adjusted the water content to 5% of the total mix – a critical learning point for the customer’s future production.

Step 3 – Shipping to Oman

• Port of loading: Karachi

• Port of arrival: Sohar, Oman

• Shipping time: 14 days

• Customs clearance: Handled by the customer (we provided full documentation, including commercial invoice, packing list, and certificate of origin)

Step 4 – On‑Site Installation and Training

Our senior engineer traveled to Oman for 10 days to:

1. Supervise unloading and positioning of the machine.

2. Connect the electrical panel to the customer’s 50 kVA generator.

3. Calibrate the hydraulic pressure to the customer’s preferred setting (initially 10 tons, with option to upgrade later).

4. Train two local operators in:

   • Mix design for high‑strength concrete (cement:sand:crush ratio)

   • Proper water content assessment (5% by weight, or the “hand squeeze” test)

   • Mould changing and daily maintenance (lubrication, bolt tightening)

*“Our operators learned how to judge the mix’s wetness by experience – something our African customers also rely on. But for precise measurement, we recommended the customer buy a moisture meter (available from US/European suppliers for around $1,000).”*
– Silver Steel Mills Field Engineer

---

Technical Challenges and Solutions During Commissioning

Challenge 1 – Too Much Water in the Mix

During initial trials at the Oman site, the bricks came out too soft – the water content was estimated at over 10%. Our engineer demonstrated how to reduce water to just 5%, resulting in much harder, more durable bricks.

Solution: We provided a simple “squeeze test” – if the concrete ball crumbles easily, it’s too dry; if water drips out, it’s too wet. The customer adopted this method successfully.

Challenge 2 – Hydraulic Pressure Upgrade Request

The customer asked about upgrading from the standard 10‑ton pressing cylinder to 100 tons for even higher compaction. We quoted an extra cost for a larger hydraulic cylinder and reinforced frame – an option they decided to consider for a future purchase.

Challenge 3 – Moisture Testing Equipment

The customer wanted an objective way to measure moisture content rather than relying on operator experience. While Silver Steel Mills does not manufacture such devices, we offered to source a digital moisture meter from our Chinese suppliers or recommended buying from US/European vendors (cost approx. $1,000). The customer appreciated the transparency.

---

Production Reality – Daily Output and Quality

After commissioning, the SSM 15 plant in Oman achieved:

Brick strength (tested after 28 days curing):

• Compressive strength: 4,800 – 5,200 PSI (exceeding customer’s 5,000 PSI target)

• Water absorption: < 7%

• Dimensional tolerance: ± 1 mm

“The bricks are much thicker and heavier than local blocks. Our construction clients love them for road edges and heavy industrial flooring.”
– Omani Customer

---

Additional Features – Batching System and Stacking

The customer also inquired about:

• A batching system to automatically weigh cement, sand, and crush into the mixer. We provided a separate quotation for a 0.5 m³ digital batching plant.

• Stacking mechanism to automatically stack finished bricks. We shared videos of our auto‑stacker option (extra cost).

Both were noted for potential future orders.

---

Shipping and Logistics to Oman

The customer handled customs clearance and local transport.

---

Why the Omani Customer Chose Silver Steel Mills

---

Conclusion – A Successful International Delivery

The delivery of the SSM 15 block making machine to Oman marks another milestone in Silver Steel Mills’ journey toward becoming a globally recognized manufacturer. By listening to the customer’s unique requirements – oversized bricks, hydraulic pressure upgrade, moisture testing guidance, and batching options – we built a solution that not only met but exceeded expectations.

If you are in Oman, the UAE, Saudi Arabia, or anywhere in the Middle East or Africa, and you need a reliable, customizable block making machine for standard or oversized products, Silver Steel Mills is your partner.





Global Exports Portfolio: Oman Mega Infrastructure Units Mein SSM 15 Hydrophone Block Machine Ki Kamyab Delivery Aur Operational Excellence

Middle East aur Gulf regions, khass tor par Oman, mein chalne wale modern engineering aur infrastructure development projects mein aala miyaar (international standards) ke concrete blocks aur interlocking eco-friendly bricks ki demand hamesha high rehti hai. Omani construction industry ke isi strict criteria aur rigorous custom structural standards ko poora karne ke liye, Silver Steel Mills (SSM) ne apna high-tech SSM 15 Hydrophone Block Making Machine Plant kamyabi se Oman deliver aur commission kar diya hai.

Yeh industrial-grade automatic plant na sirf high-density blocks banata hai balki high compaction pressure ke sath customizable geo-dimensions par perform karne ki mukammal salahiyat rakhta hai.

Technical Architecture: Hydrophone Bricks Ki Customized Dimensioning

Oman project ke mutabiq, machine ke structural die-mould aur processing frame ko specialized thick design parameters ke sath engineered kiya gaya hai taake heavy load-bearing requirements ko 100% achieve kiya ja sake:

1. Multi-Size Matrix Capacity

• Thicker Brick Setup (25 cm+): Jab material ki thickness aur height 25 cm se zyada (jaise 210mm se 220mm width range) rakhi jati hai, toh heavy volume mass ki wajah se machine aik stroke mein 2 high-density bricks mold karti hai.

• Standard Width Unit (150 mm): Jab design matrix ko standard structural requirement (150mm width) par set kiya jaye, toh yahi SSM 15 model aik single cycle stroke mein 4 bricks ka high-output deliver karta hai.

2. Moisture Control Optimization (5% Moisture Ratio Rule)

Gulf ke khushk weather aur material stability ke liye slurry composition ka perfect hona lazmi hai:

• The Dryness Standard: SSM engineering guidelines ke mutabiq, aala tareen compressive strength haasil karne ke liye raw material (soil-cement mixture) ke andar paani ki miqdar ko zyada wet nahi hona chahiye.

• The 5% Formula: Behtareen density aur instant hardness ke liye mixture ke andar sirf 5% water ratio (moisture level) barkarar rakha jata hai. Is dry-mix optimization se mould se nikalne ke baad bricks ki edge-sharpness aur vertical setting nihayat solid aati hai.

Production Capabilities & Multi-Mould Flexibility

SSM 15 Plant apni compact machinery footprint aur strong operating system ke sath bade commercial contractors ke liye cost-effective aur heavy output unit sabit hota hai:

• High Compaction Cycle: Iska fast automated structure har 25 se 35 seconds ke andar aik stroke pallet complete karta hai.

• Turnkey Versatility: Aik hi automatic assembly unit par moulds change karke high-strength interlocking pavers, solid structural blocks, hollow masonry units aur 12×14 inch road curbstones ba-aasaani manufacture kiye ja sakte hain.

Data-Driven Technical Parameters & Upgradability

Google search optimization aur professional technical tracking ke liye, neeche SSM 15 export model ke baseline parameters aur available industrial heavy-tonnage options ki detail sheet di gayi hai:

Operational Feature	Standard Specification	Heavy Industrial Upgrade Option
Machine Model	Silver Steel Mills SSM 15	SSM Custom Mega Series
Primary Deployment	Oman Industrial Infrastructure	Global Export Protocols
Baseline Hydraulic Cylinder Force	10 Tons (Standard Compact Force)	100 Tons Upgrade Available (Heavy Cylinder Setup)
Operational Control	Heavy Hydraulic Valve Control Assembly	Integrated Batching Automation Panel
Material Handling Setup	Core Single Mixer with High-Grade Conveyor Belt	Integrated Multi-Material Hopper Scales
Product Output Range	50mm se lekar 250mm+ Height tak fully adjustable	Customizable Structural Dimensions

Technical Validation & Precision Engineering

Silver Steel Mills hamesha export machinery ko high quality inspection aur certified execution ke sath dispatch karta hai. Euro-Standard aur US specifications ke mutabiq moisture tracking aur precise manufacturing ke liye hum automatic digital tracking equipment compatibility faraham karte hain. Client ki demand par chemical composition analysis aur raw materials ki accurate verification ke liye high-end automated checking system ko backup panels ke sath integrate kiya jata hai taake human error ka imkan bilkul khatam ho jaye.

Global Export Logistics, Shipping, and Insurance

Silver Steel Mills (SSM) aik mukammal global supply chain network operate karta hai. Oman samait Gulf, Africa, Europe, aur North America (Canada) tak hamari machinery absolute safety aur industrial compliance ke sath deliver ki jati hai:

• CIF/CFR Export Management: Hum port-to-port delivery ke sath complete commercial transport handling khud manage karte hain.

• Comprehensive Shipping Insurance: International maritime rules ke mutabiq, har machinery transit ko fully insured (cargo insurance coverage) kiya jata hai taake global shipments mahfooz tareen tarike se client ki site tak pahonchein.

Tameerati Projects Ke Liye SSM Se Rabta Karein

Agar aap GCC regions, Oman, Africa, ya Pakistan mein kisi housing society, highway network, commercial plaza, ya block manufacturing factory ke liye heavy-duty automatic block making machinery lagana chahte hain, toh us engineering brand par bharosa karein jo poori dunya mein Pakistan ka naam roshan kar raha hai.
