Hydraulic System and High-Frequency Vibration

A modern hydraulic block machine uses controlled compression together with vibration to compact the concrete mixture inside the mould.

Hydraulic Compression

The hydraulic system applies controlled force during moulding. The required hydraulic configuration depends on the machine model, mould arrangement and product requirements.

Hydraulic system quality also depends on correct oil selection, filtration, cooling, seals, valves, cylinders, pump sizing and regular maintenance.

Vibration System

Vibration helps distribute and compact the semi-dry concrete mixture throughout the mould. Correct vibration timing and frequency are important for consistent density, edges and surface finish.

Block strength is not determined by hydraulic pressure alone. The final performance of a concrete block also depends on cement content, aggregate grading, water content, compaction, mould filling and curing.

Block Machine Moulds and Product Configuration

One of the major advantages of a multi-product block machine is the ability to change the mould according to the required product.

Different moulds can be supplied for:

• Hollow blocks
• Solid blocks
• Interlocking pavers
• Tuff tiles
• Kerbstones
• Other custom concrete products

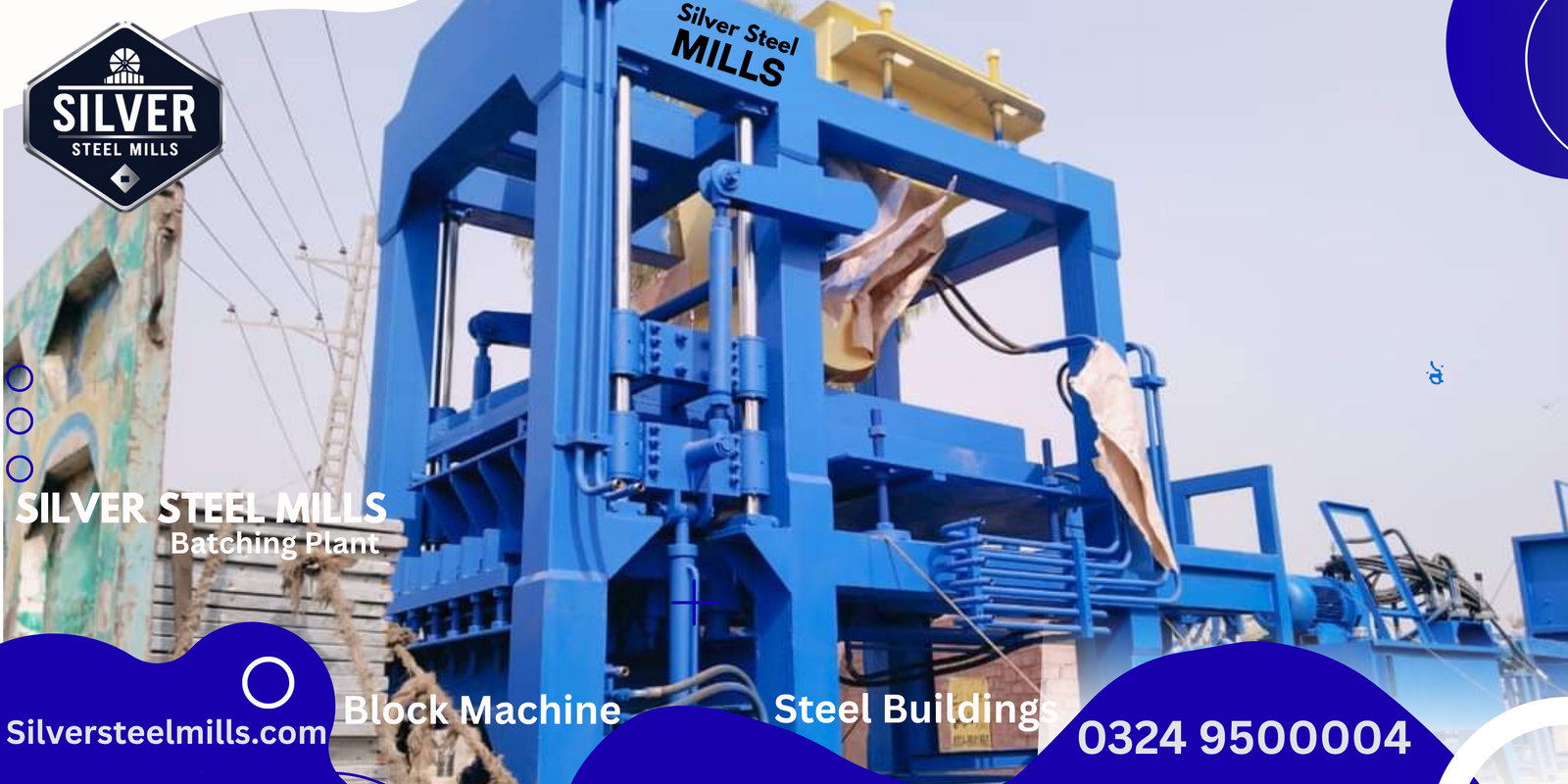

Real Project images SSM Concrete Batching Plant image

Before ordering a mould, the buyer should provide the exact product drawing or dimensions, required production quantity per cycle and intended application.

This prevents a common purchasing mistake: selecting a machine first and discovering later that the required product cannot be produced efficiently with the selected mould arrangement.

Automatic Batching System for Block Production

For higher-production plants, an automated batching system can be integrated with the block production line.

A typical automated material flow is:

Aggregate Bins → Weighing System → Mixer → Conveyor → Block Machine → Pallet/Product Handling

The batching system is used to control the quantity of materials entering each batch. Depending on the plant configuration, materials may include sand, crushed aggregate, cement and other approved mix ingredients.

Accurate batching improves repeatability because the operator is not relying solely on manual measurement of each material.

Concrete Mixer for Block Machine Plants

The mixer is a critical part of a block production line because the concrete mixture must be properly homogenized before it reaches the moulding machine.

Silver Steel Mills supplies mixer configurations according to plant capacity and product requirements.

Mixer selection should consider:

• Batch size
• Aggregate size
• Moisture content
• Mixing time
• Required production cycle
• Wear resistance
• Motor and gearbox configuration
• Discharge arrangement

Conveyor System for Automatic Block Plants

In an automated production line, conveyors transfer prepared material between processing stages.

A properly designed conveyor system can connect the mixer or material discharge point with the block machine hopper and reduce unnecessary manual material handling.

Conveyor selection depends on:

• Required conveying capacity
• Conveyor length
• Belt width
• Material characteristics
• Inclination
• Motor and gearbox configuration
• Site layout

Semi-Automatic vs Fully Automatic Block Making Machine

The cheapest machine is not necessarily the cheapest production solution. If your required output is high, a properly designed automatic line may provide better production control than purchasing a smaller machine and expanding it later.

What Is Included in a Block Machine Quotation?

Always ask the manufacturer for an itemized quotation. Depending on the selected model, a quotation can include different combinations of:

• Main hydraulic block machine
• Hydraulic power unit
• Vibration system
• Control panel
• Required mould set
• Mixer
• Aggregate batching system
• Conveyor belt
• Automatic pallet handling
• Product stacker where applicable
• Electrical control equipment
• Installation and commissioning scope
• Operator training

Do not compare two machines only by their advertised price if one quotation includes the mixer, conveyor and batching system while the other quotation covers only the main machine.

Factors That Affect Block Making Machine Price in Pakistan

1. Production Capacity

A higher-output production line generally requires a larger machine, stronger material handling system, higher mixer capacity and more automation.

2. Automation Level

Semi-automatic systems require more operator involvement, while fully automatic plants integrate more of the material handling and production sequence.

3. Mould Configuration

Mould design affects the number of products produced per cycle and the type of products that can be manufactured.

4. Hydraulic System

Pump capacity, hydraulic components, cooling, cylinders and control requirements influence the final machine configuration.

5. Mixer and Batching Plant

A complete production line costs more than the main block machine alone because the material preparation and handling equipment are also part of the system.

6. Electrical Configuration

Motor ratings, control systems, automation and site electrical requirements affect both plant configuration and installation requirements.

7. Delivery and Installation

Transportation, site access, foundation preparation, installation and commissioning should be considered separately when preparing the complete project budget.

How to Choose the Right SSM Block Making Machine

Before requesting a quotation, answer these questions:

1. What product do you want to manufacture?
2. What are the exact product dimensions?
3. How many blocks, pavers or tiles do you need per day?
4. How many production hours will the plant operate?
5. Do you need semi-automatic or fully automatic production?
6. Do you require a batching plant?
7. What mixer capacity is suitable for your target output?
8. Do you need an automatic conveyor and stacking system?
9. What electrical power is available at the site?
10. Where will the plant be installed?
11. Which moulds are required?

Once these details are known, the manufacturer can recommend the appropriate SSM configuration rather than quoting a machine that is either too small or unnecessarily oversized.

Block Making Machine Business in Pakistan

A block manufacturing plant can serve contractors, developers, housing projects, building-material suppliers and infrastructure projects.

Potential products include concrete blocks, pavers, tuff tiles and kerbstones. The commercial viability of the plant depends on local demand, cement and aggregate prices, electricity, labour, transportation, curing facilities, selling prices and plant utilization.

For this reason, Silver Steel Mills recommends preparing a site-specific feasibility calculation rather than relying on generic internet profit figures.

Raw Materials Used for Concrete Blocks

Depending on the product and approved mix design, concrete block production may use combinations of:

• Cement
• Sand
• Crushed aggregate
• Stone dust or suitable fine aggregate
• Fly ash or other supplementary materials where technically suitable
• Water
• Approved admixtures where required

The correct mix design should be established according to the required product strength, density, workability, curing conditions and available raw materials.

Production Quality: Machine Alone Does Not Determine Block Strength

A high-quality machine provides controlled moulding and compaction, but the final concrete product depends on the complete manufacturing process.

• Correct aggregate grading
• Correct cement content
• Controlled moisture
• Proper mixing
• Correct mould filling
• Consistent vibration and compaction
• Accurate mould dimensions
• Proper curing
• Quality control and laboratory testing

For commercial projects, the finished blocks or pavers should be tested according to the specification required by the customer or project.

Installation, Training and Maintenance

Industrial block machines require correct installation and routine maintenance. Before commissioning, the site should have suitable foundations, electrical supply, working space, material storage and curing arrangements.

Routine Maintenance

• Inspect hydraulic oil level and condition.
• Check hydraulic hoses, seals and fittings.
• Inspect vibration components and mounting points.
• Keep mould surfaces clean after production.
• Remove hardened concrete from working areas.
• Inspect conveyor belt alignment and tension.
• Check gearbox and bearing lubrication according to manufacturer instructions.
• Inspect electrical connections and control components.

Proper maintenance reduces avoidable downtime and helps maintain consistent machine operation.

Why Buy a Block Making Machine Directly From the Manufacturer?

Buying directly from a manufacturer gives the buyer an opportunity to discuss the complete technical configuration before placing an order.

Silver Steel Mills operates as a machinery and engineering manufacturer in Pakistan and provides SSM-series block production equipment for different production requirements.

• Machine configuration according to production requirements
• Custom mould selection
• Production-line planning
• Mixer and conveyor integration
• Batching-system options
• Installation and commissioning support
• Operator guidance and training
• Maintenance and spare-parts support

Related Silver Steel Mills Block Machine Solutions

If you are comparing different production systems, you can also review the main block machine category for the available SSM range.

For customers specifically looking for higher automation, see the automatic block making machine price and specification guide.

If your primary product is interlocking paving material, you can also review the tuff tile machine in Pakistan.

For projects requiring ash-based masonry production, review the fly ash brick machine solution where applicable.

Frequently Asked Questions About Block Making Machines in Pakistan

Frequently Asked Questions About Block Making Machine Prices

What is the block making machine price in Pakistan?

The price depends on the model, production capacity, automation level, mould, hydraulic configuration and whether mixer, batching, conveyor and stacking equipment are included. Silver Steel Mills provides quotations according to the required configuration.

Which block making machine is suitable for a small business?

A smaller semi-automatic SSM configuration can be considered when the required production volume and investment level are limited. The correct model should be selected after confirming the required product and daily output.

Which SSM machines are fully automatic?

The SSM range includes fully automatic configurations for higher production requirements, including SSM 24, SSM 28, SSM 35 and SSM 50 configurations. Final equipment configuration should be confirmed in the quotation.

Can one machine make hollow blocks and pavers?

Many SSM configurations can be configured for multiple concrete products by changing the appropriate mould. Product dimensions and mould compatibility should be confirmed before ordering.

Does the price include a mould?

This depends on the quotation. The required mould type and quantity should be clearly listed in the final quotation so the buyer knows exactly what is included.

Does a block machine include a mixer?

A mixer can be supplied as part of a complete production setup, but buyers should confirm whether the quotation is for the main machine only or a complete machine, mixer, conveyor and batching line.

Can Silver Steel Mills manufacture a custom block machine configuration?

Custom configurations can be discussed according to product dimensions, production target, mould requirements, automation level and site conditions.

How do I get the current block machine price?

Because machine configurations and steel, hydraulic and electrical component costs can change, the most accurate method is to request a current itemized quotation from Silver Steel Mills with your required model, product, mould and production target.

Request a Block Making Machine Quotation

If you are planning a new block factory, expanding an existing production unit or looking for a machine for a housing, infrastructure or commercial project, send Silver Steel Mills the following information:

• Required machine model, if already selected
• Required blocks/pavers per day
• Product dimensions
• Required mould type
• Site city and province
• Available electrical supply
• Whether batching, mixer and conveyor are required
• Whether automatic stacking is required

Based on these details, the engineering team can prepare a suitable machine configuration and quotation.
